Anatomy of Garage Door: How Each Part Works Together

Explore the anatomy of a garage door to understand how each component functions together to keep your system working reliably.

When we think about a garage door, most people picture just the panels that move up and down. But behind that movement is a system of connected parts that are important for the door’s performance, safety, and strength. Knowing the anatomy of a garage door can help homeowners identify issues, schedule proper maintenance, and make more informed upgrade decisions.

Whether you’re a DIY enthusiast or simply want to understand better how your home’s systems work, this guide will walk you through each key component and how they function together. By the end, you’ll understand the main anatomy of a garage door, its key mechanics, and why professional installation and maintenance matter.

If something goes wrong, understanding what part is failing makes repairs faster, easier, and more cost-effective.

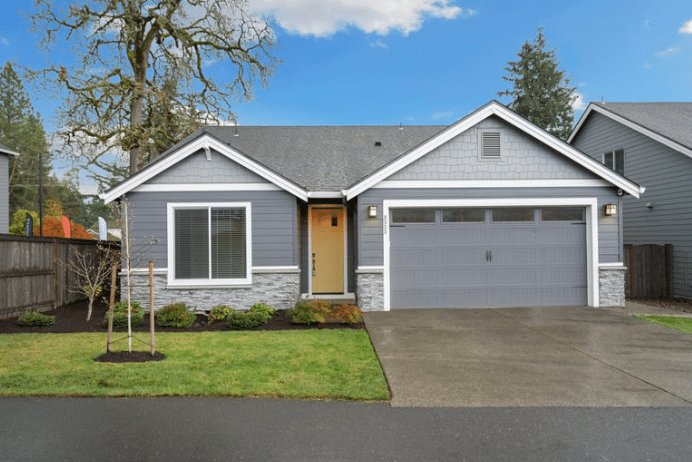

Garage Door Panels: The Face of the System

Garage door panels are the most visible part of a garage door system. While they contribute greatly to the home’s exterior appearance, their function extends well beyond aesthetics. This guide breaks down their purpose, types, materials, and key considerations when selecting the right panels for your home.

1. Purpose and Functionality

Garage door panels are essential to the overall performance of the door system. Their roles include:

• Aesthetic Appeal: Enhance the curb appeal of your home.

• Insulation: Help maintain internal garage temperatures and improve energy efficiency.

• Weather Protection: Serve as a barrier against wind, rain, snow, and debris.

• Structural Strength: Contributes to the door’s stability and durability.


2. Types of Garage Door Panels

Most residential garage doors fall into one of two design types:

Single-Panel Doors

• Consists of one solid piece.

• Tilt upward and slide out as a single unit.

• Simpler design, but can be more mechanically demanding.


Sectional Doors

• Made of multiple horizontal panels joined by hinges.

• Bend and roll as the door opens/closes.

• Offer smoother operation, greater safety, and easier repairs.

• More common in modern homes.


3. Panel Materials

Garage door panels are available in a range of materials, each with its own pros and cons:

• Steel

  • Benefits: Strong, secure, and often insulated

  • Considerations: Can rust without proper coating

• Wood

  • Benefits: Natural, elegant appearance

  • Considerations: Requires regular maintenance

• Aluminum

  • Benefits: Lightweight, rust-resistant

  • Considerations: Less durable than steel

• Fiberglass

  • Benefits: Resistant to corrosion and denting

  • Considerations: Can fade or crack over time


4. Key Considerations When Choosing Panels

• Climate: Insulated panels are ideal for cold regions; rust-resistant materials suit humid or coastal climates.

• Maintenance: Some materials (like wood) require more upkeep than others (like aluminum or steel).

• Security & Durability: Heavier, reinforced panels can offer better protection and last longer.

• Design Preferences: Choose panels that match your home’s architecture and desired aesthetic.

Tracks and Rollers: Guiding the Motion

1. Purpose and Function

• Tracks: Long, metal channels mounted vertically on the garage walls and horizontally along the ceiling. They form the pathway for the door’s movement.

• Rollers: Small wheels attached to the sides of each door panel. These glide inside the tracks, allowing the door to move up and down smoothly.


2. How They Work Together

• Rollers sit inside the tracks and move along them as the door opens or closes.

• Proper alignment between the tracks and rollers ensures smooth, quiet, and safe operation.

• Tracks must be precisely installed and securely fastened to prevent misalignment or friction.


3. Common Issues

• Bent Tracks: Can disrupt the door’s movement or cause it to get stuck.

• Worn Rollers: May create loud noises, wobble, or fall out of the tracks.

• Misalignment: Even minor shifts can lead to uneven motion or operational failure.


4. Maintenance Tips

• Regular Inspection:

  • Check tracks for dents, warping, or loose bolts.

  • Look for roller damage such as cracks, wear, or looseness.

• Lubrication:

  • Use a silicone-based lubricant on rollers and track surfaces to reduce friction.

  • Avoid using grease or heavy oils that attract dust and debris.

• Clean the Tracks:

  • Remove debris, dirt, or buildup that might obstruct roller movement.


5. Importance of Maintenance

• Prevents costly repairs and premature wear.

• Ensures quiet, smooth operation.

• Enhances the longevity and safety of your garage door system.

Springs: The Heart of the Garage Door System

1. Role and Importance

Garage door springs are the primary force behind the lifting and lowering of your garage door. While it may seem like the opener does all the work, the truth is that the springs carry most of the door’s weight. Without properly functioning springs, the door would feel extremely heavy—often weighing over 150 pounds—and could be nearly impossible to lift manually.

Springs store mechanical energy and release it as needed to counterbalance the door’s weight. This makes opening and closing smooth and manageable, whether by hand or through an automatic opener.

2. Types of Garage Door Springs

There are two main types of garage door springs, each with unique characteristics, advantages, and maintenance requirements.

A. Torsion Springs

• Location: Mounted horizontally above the garage door opening on a metal shaft.

• Mechanism: These springs operate by twisting to create torque. When the door is closed, the springs wind up and store energy. As the door opens, the springs unwind and release energy to assist in lifting.

• Advantages:

  • Known for durability and longer lifespan.

  • Provides smoother and more controlled motion.

  • Fewer parts involved, which can reduce the risk of component failure.

• Maintenance Note: Requires professional adjustment due to the high tension involved.


B. Extension Springs

• Location: Installed on both sides of the garage door, typically running parallel to the horizontal tracks.

• Mechanism: These springs stretch and contract to generate force. When the door is closed, they extend fully and store energy. As the door opens, they contract and help lift the door.

• Advantages:

  • More affordable and easier to install.

• Disadvantages:

  • Shorter lifespan compared to torsion springs.

  • More prone to sudden failure, so safety cables are required to prevent injury if a spring breaks.

• Maintenance Note: Inspect regularly for signs of wear, rust, or stretching.


3. Safety and Maintenance Tips

• Regular Inspections: Look for signs of wear such as gaps in coils, rust, or uneven movement.

• Do Not Attempt DIY Repairs: Both torsion and extension springs are under high tension and can cause serious injury if mishandled.

• Listen for Changes: Unusual noises when opening or closing could indicate spring issues.

• Test Balance: Disconnect the opener and manually lift the door. If it doesn’t stay open halfway, your springs may be losing tension.


Garage Door Opener: The Brain of the Operation

A garage door opener is a motor that opens and closes your garage door with the push of a button. You can control it using a remote, a keypad, or a button on the wall. It makes using your garage door much easier and more convenient.

There are different types of openers. Chain-drive openers are strong and affordable, but can be noisy. Belt-drive openers are much quieter and great for garages attached to your home. Screw-drive openers are simple and need less maintenance, but they may be a little louder than belt drives.

Newer garage door openers also have smart features. With built-in Wi-Fi, you can open and close your garage door from your phone. Some models even work with voice assistants like Alexa or Google. You can get alerts, check if your door is open or closed, and even set it to close automatically when you leave home.

No matter what kind you choose, a good garage door opener makes life easier and keeps your home secure.

Hinges and Brackets: Keeping Things Connected

Garage doors may seem simple, but they rely on strong parts working together, especially the hinges and brackets. These components are key to the smooth and safe operation of your door.

What Hinges Do

• Connect Panels: Hinges join each panel of a sectional garage door, allowing it to bend and follow the curved track during movement.

• Support Flexibility: Without hinges, the door couldn’t flex and move properly when opening or closing.

• Heavy-Duty: Made of strong metal, they are built to handle the door’s weight and frequent use.


What Brackets Do

• Hold Components in Place: Brackets secure the tracks, rollers, and other parts to the door or garage frame.

• Absorb Stress: As the door moves, brackets help absorb some of the force and vibration, protecting the system.

• Keep Things Aligned: Proper bracket placement ensures the door moves evenly and stays on track.


Why Maintenance Matters

• Avoid Noise and Damage: Loose hinges and brackets can cause squeaking, rattling, or jerky movement.

• Prevent Malfunctions: If these parts become too loose or worn, they can lead to bigger problems—or even total door failure.

• Safety First: Regularly checking and tightening hardware helps keep the door safe for everyday use.


Simple Maintenance Tips

• Inspect Monthly: Look for any loose or rusted hardware.

• Tighten Screws: Use a wrench or screwdriver to snug up loose bolts.

• Listen for Changes: New noises may mean something’s out of place.

Cables and Drums: Transferring Energy

The cables and drums in a garage door system play a key role in lifting and lowering the door smoothly and safely.

How Cables and Drums Work Together

• High-Tension Cables: These strong, steel cables are attached to the bottom of the garage door and wind around metal drums mounted on either end of the torsion spring bar.

• Energy Transfer: As the torsion springs twist and release, energy is transferred through the drums to the cables, helping the door open and close with balanced movement.

• Controlled Motion: This setup ensures the door moves evenly on both sides, preventing jerking or tilting.


Why Maintenance Is Critical

• Frayed or Snapped Cables: Damaged cables are a serious safety risk. If a cable breaks, the door can become unbalanced or crash down unexpectedly.

• Professional Repair Only: Because cables and springs are under high tension, no one should do repairs without proper training. Always call a professional to avoid injury.

Safety Sensors and Controls: Protecting Your Family

Today’s garage doors include important safety features to prevent accidents and make daily operation more convenient.

Photo-Eye Safety Sensors

• Obstacle Detection: These small sensors are installed near the floor on both sides of the door. They send an invisible beam across the opening.

• Automatic Reversal: If something—like a child, pet, or object—breaks the beam while the door is closing, the sensors stop the door and make it go back up.


Control Systems

• Wall Switches: Located inside the garage, usually near the door to your home, for easy access.

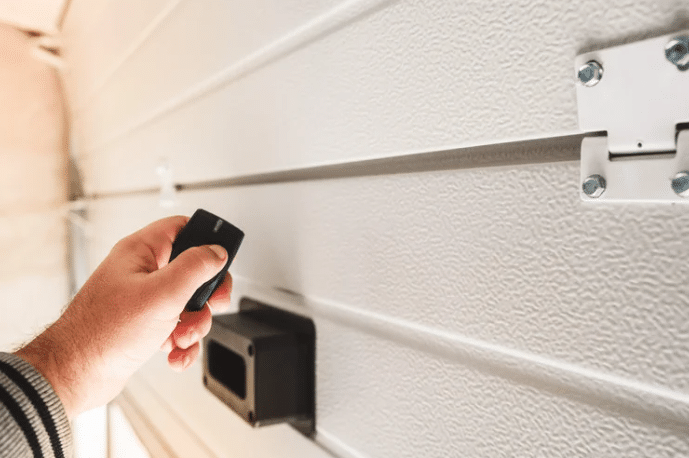

• Remote Controls: Let you open or close the garage door from your car or keychain.

• Smart Home Integration: Newer systems can connect to your phone, allowing you to monitor and control your garage door from anywhere. Some even work with voice assistants like Alexa or Google Assistant.


Why These Features Matter

• Protect People and Property: Safety sensors prevent injuries and damage.

• Convenience and Security: Smart controls help you check if the door is closed, get alerts, or grant access remotely.

Frequently Asked Questions

What is the metal around the garage door called?

The metal around the garage door is typically called the garage door track or frame. It guides the door’s movement and helps keep it aligned as it opens and closes.

What is the strip around the garage door called?

The strip around the garage door is known as weatherstripping. It helps seal gaps, keeping out water, wind, and debris while improving insulation.

What are garage door sections?

Garage door sections are the individual horizontal panels that make up the entire door. These panels are connected with hinges, allowing the door to bend and roll upward along the tracks.

What are the parts of a garage door?

Common garage door parts include panels, springs, tracks, rollers, hinges, cables, and weatherstripping. Each part is crucial for the door’s smooth and safe operation.

What is the bottom part of a garage door called?

The bottom part of a garage door is called the bottom panel or bottom rail. It often includes a rubber seal or weatherstrip to prevent drafts and water from entering the garage.

Conclusion

Understanding the complete anatomy of a garage door can change how you approach maintenance, repair, and upgrades. Each part,  from the opener and springs to the tracks and panels, works together to deliver safe, smooth, and reliable operation.

When one component fails, it often affects the rest of the system. That’s why knowledge and proactive care are so necessary. By learning how the system works, you’re better prepared to catch issues early and extend the life of your garage door.

Working with a skilled garage door professional ensures long-term performance and safety for residents in Mission Viejo and surrounding areas. Whether you need repairs or a full system replacement, Royale Garage Door Service, Inc. is ready to help.
